LED Downlights for Retail, Hospitality & Commercial
12 W – 55 W across three series · Ra ≥ 80 standard · Ra ≥ 90 available · 15°–60° · 24°–60°
KELVANO LED downlights come in two formats for commercial interiors: fixed recessed (THD series) for general lighting and adjustable gimbal (XBD series) for accent and wall-washing. Recessed sizes run 12–55 W with cut-outs from Ø75 to Ø220 mm, gimbals 12–50 W, all at Ra 80 standard and Ra 90 available, non-dimming or with Bluetooth Mesh control. For UK projects, BS 476 fire-rated versions restore the fire barrier of a rated ceiling. Measured IES files are available on request for core SKUs, Orders run from 50 units to full rollouts, and quotations are returned in 48 hours.
Specification
Three recessed series cover general lighting, budget rollouts and aimable accent. All are IP20, Ra ≥ 80 standard with Ra ≥ 90 available, in 3000K / 4000K / 5000K, and each is available non-dimming or with Bluetooth Mesh control.

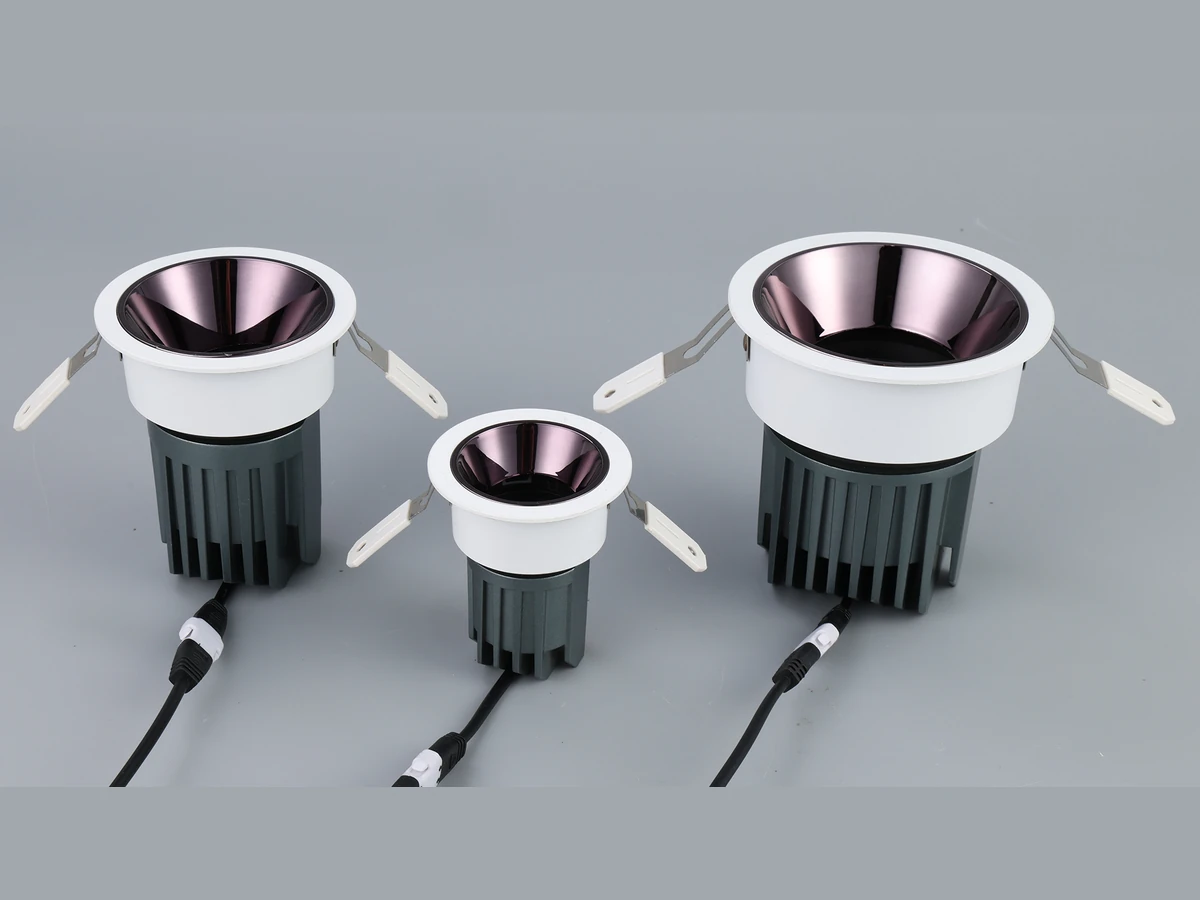

COB recessed downlights (THD-003)
| Size (Ø × H) | Cut-out | Power | Beam angles | Efficacy |
|---|---|---|---|---|
| Ø115 × 60 mm | Ø105 mm | 15 W | 15° / 24° / 36° / 60° | 120 lm/W |
| Ø136 × 70 mm | Ø125 mm | 25 W | 15° / 24° / 36° / 60° | 120 lm/W |
| Ø162 × 80 mm | Ø145 mm | 35 W | 15° / 24° / 36° / 60° | 120 lm/W |
| Ø195 × 95 mm | Ø175 mm | 40 W | 15° / 24° / 36° / 60° | 120 lm/W |
| Ø220 × 105 mm | Ø200 mm | 50 W | 15° / 24° / 36° / 60° | 120 lm/W |
Finish: white or black; custom colours on request.
SMD recessed downlights (THD series, photo to follow)
| Size (Ø × H) | Cut-out | Power | Output | Beam angles |
|---|---|---|---|---|
| Ø100 × 70 mm | Ø75–90 mm | 12 W | 1400 lm | 24° / 36° / 60° |
| Ø120 × 80 mm | Ø90–110 mm | 18 W | 2100 lm | 24° / 36° / 60° |
| Ø150 × 90 mm | Ø120–140 mm | 24 W | 2880 lm | 24° / 36° / 60° |
| Ø175 × 100 mm | Ø140–165 mm | 36 W | 4320 lm | 24° / 36° / 60° |
| Ø230 × 110 mm | Ø190–220 mm | 55 W | 6600 lm | 24° / 36° / 60° |
Finish: white or iron grey. Adjustable cut-out range on each size suits retrofits into existing holes.

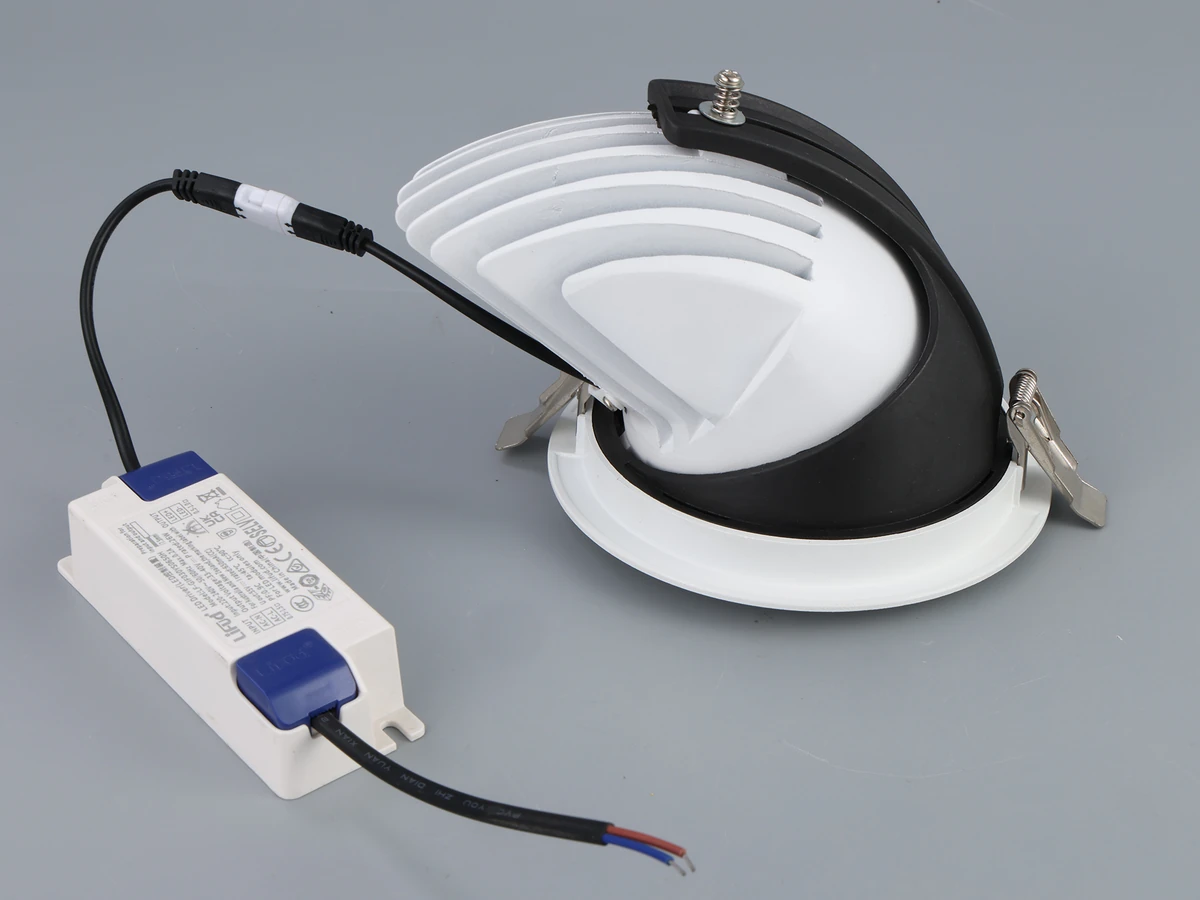

Adjustable gimbal downlights (XBD series)
| Size (Ø × H) | Cut-out | Power | Source | Lens |
|---|---|---|---|---|
| Ø90 × 50 mm | Ø75 mm | 12 W | COB | clear or frosted |
| Ø102 × 80 mm | Ø95 mm | 15 W | COB | clear or frosted |
| Ø125 × 108 mm | Ø110 mm | 25 W | COB | clear or frosted |
| Ø140 × 115 mm | Ø125 mm | 35 W | COB | clear or frosted |
| Ø160 × 135 mm | Ø145 mm | 40 W | COB | clear or frosted |
| Ø190 mm | Ø175 mm | 50 W | COB | clear or frosted |
Finish: white or black. Colour temperature bands 2800–3200K / 3700–4500K / 5300–6500K.
| Common to all series | Value |
|---|---|
| Colour rendering | Ra ≥ 80 standard · Ra ≥ 90 available |
| Control | Non-dimming, or Bluetooth Mesh (app, remote, wall panel); DALI / Triac on request |
| Fire rating | BS 476 fire-rated versions for UK projects |
| IP rating | IP20 |
| Lifespan | L70 > 50,000 h (typical) |
| Warranty | 5 years |
Request IES / LDT files → · Driver brand is specified on your proforma invoice (commonly Lifud or BOKE).
Recessed or gimbal: which to specify
- THD recessed — fixed, straight-down. The general-lighting layer for hotel rooms, corridors, offices and retail floors. Specify by cut-out size and lumen output to hit the target lux at your ceiling height.
- XBD gimbal — tilts and rotates. Aim it at a wall, a product display or a feature; use it where the ceiling grid does not line up with what needs lighting. Pair with Ra 90 for fashion, food and hospitality.
For matching beam angle to ceiling height and display type, see the beam angle guide.
Bluetooth Mesh control
Every series is available with a Bluetooth Mesh module built into the fitting. Fixtures form their own wireless network and are grouped, dimmed and scene-set from a phone app, a handheld remote or a wall panel, with no control cable and no DALI bus. For retail rollouts and refits, that removes the most expensive part of adding lighting control. Specify Bluetooth Mesh or non-dimming per SKU on your RFQ.
Fire-rated downlights for UK projects
When a downlight is cut into a fire-rated ceiling, the hole breaks the ceiling’s fire barrier. A BS 476 fire-rated downlight is built to restore that barrier for the ceiling’s rated period. We supply fire-rated versions across the range; state the ceiling rating (30, 60 or 90 minutes) on your RFQ and we quote the matching SKU. This is a regulatory requirement on most UK commercial and residential-block projects, not an upgrade.
Applications
- Retail & shop lighting — recessed for the ambient layer, gimbal for wall-wash and display accent, over a 750–1000 lx target.
- Hospitality — hotel rooms and corridors at Ra 90, DALI-dimmed for scene control.
- Commercial interiors — offices and circulation at 500 lx, UGR-controlled anti-glare optics.
Why buy downlights from KELVANO
Two things a UK or EU buyer can check: fire-rated versions are available for the projects that legally require them, and the driver brand is named on your PI — commonly Lifud or BOKE — rather than left unspecified. Add Ra 90 across the range, measured IES for core SKUs, and one manufacturer covering recessed, gimbal, track and linear in a single consolidated order under a 5-year warranty, from 50 units to a full-estate rollout.
Request a quotation
From a single store to a multi-site rollout: send the brief and we return the layout, fixture schedule and quotation.
Send your cut-out sizes, ceiling rating (if fire-rated), target lux and quantities, and we will quote fixture selection within 48 hours, with DIALux support on qualified projects.
Request a quote → · WhatsApp · [email protected] · replies within business hours (GMT+8)
Product questions
Do you supply fire-rated downlights for the UK?
What is the difference between a recessed and a gimbal downlight?
Which CRI should I specify?
Can the downlights be dimmed?
Can I get IES files for a DIALux layout?
What is the MOQ and lead time?
Quote THD-003.
Pricing in 48 hours.
- FOB or DDP pricing with MOQ tiers
- Free samples, credited against your first order
- IES files and DIALux layouts on qualified projects
- Answered by a lighting engineer, not a chatbot
