LED Track Lighting Systems for Retail & Commercial

KELVANO LED track lighting is a 3-circuit spotlight system for retail and commercial interiors, built around 15–32 W spots at 140 lm/W with 15°, 24° and 36° optics (a separate zoomable head covers 15–60°), Ra 90, and Triac/DALI/0-10V dimming. A standard 3-circuit (4-wire) adaptor lets you re-lamp an existing rail without replacing it. The KV-TS-104 series adds a 25–35 W COB spot at 130 lm/W with optional Bluetooth (BLE) control for app and wall-panel dimming without control wiring. IES and LDT photometric files can be measured for project specifications. Orders run from 50 units to full rollouts, and quotations are returned in 24 hours. For compact heads and tool-free repositioning, see our 48V magnetic track system.

Specification

Four track spotlight series run on the same 3-circuit (4-wire) track. KV-TS-101, KV-TS-102 and KV-TS-103 share one optical platform at 140 lm/W with an integrated driver; they differ in body length. The KV-TS-104 series is the COB spot with optional Bluetooth (BLE) control.

KV-TS-101 · slim body

KV-TS-102 · standard body

KV-TS-103 · short body

KV-TS-104 series

Need an adjustable beam? The zoomable KV-TZ-101 spot covers 15–60° on the same track.

Request IES / LDT files → · Integrated flicker-free driver as standard; driver brand named on your proforma invoice.

Who manufactures LED track lighting for UK retail fit-outs?

KELVANO manufactures 3-circuit LED track spotlights at its own production base in Zhongshan, China, and supplies UK shopfitters and retail chains factory-direct, from 50 units per SKU, with a quotation within 24 hours.

A UK fit-out usually specifies three things from this range: Ra 90 on the main spot series, so merchandise colour holds under the light, a beam angle matched to the ceiling height, 15°, 24° or 36° fixed and 15° to 60° on the zoomable head, and switchable power and colour temperature on most series, which lets a chain hold one part number per size instead of one per wattage. Every spot takes a standard 3-circuit (4-wire) adaptor, so an existing rail can be re-lamped rather than replaced.

Samples can be supplied before a first order, charged and credited on the terms set out in the quotation block at the foot of this page. What the supply relationship looks like, from documents to inspection, is on the commercial lighting supplier page.

Selectable power and colour temperature

Most KELVANO track spot and downlight series can be supplied with a switch on the fixture that sets the power level and one of three colour temperatures on site. Dimming (Triac, 0-10V, DALI or Bluetooth) is available alongside. The exact wattage steps and colour temperatures are confirmed per model on your quotation. Not sure which dimming system to use? See our LED dimming guide.

What this means for your stock:

• One model replaces several: a single switchable fixture covers low, medium and high output and warm, neutral and cool white.
• Fewer SKUs to hold: distributors stock one part number per size instead of one per wattage and colour temperature.
• Decide on site: the installer sets output and colour at handover, after the space is fitted out, not at the order stage.
• Simpler replacements: a spare from the shelf can be set to match the fixtures already installed.

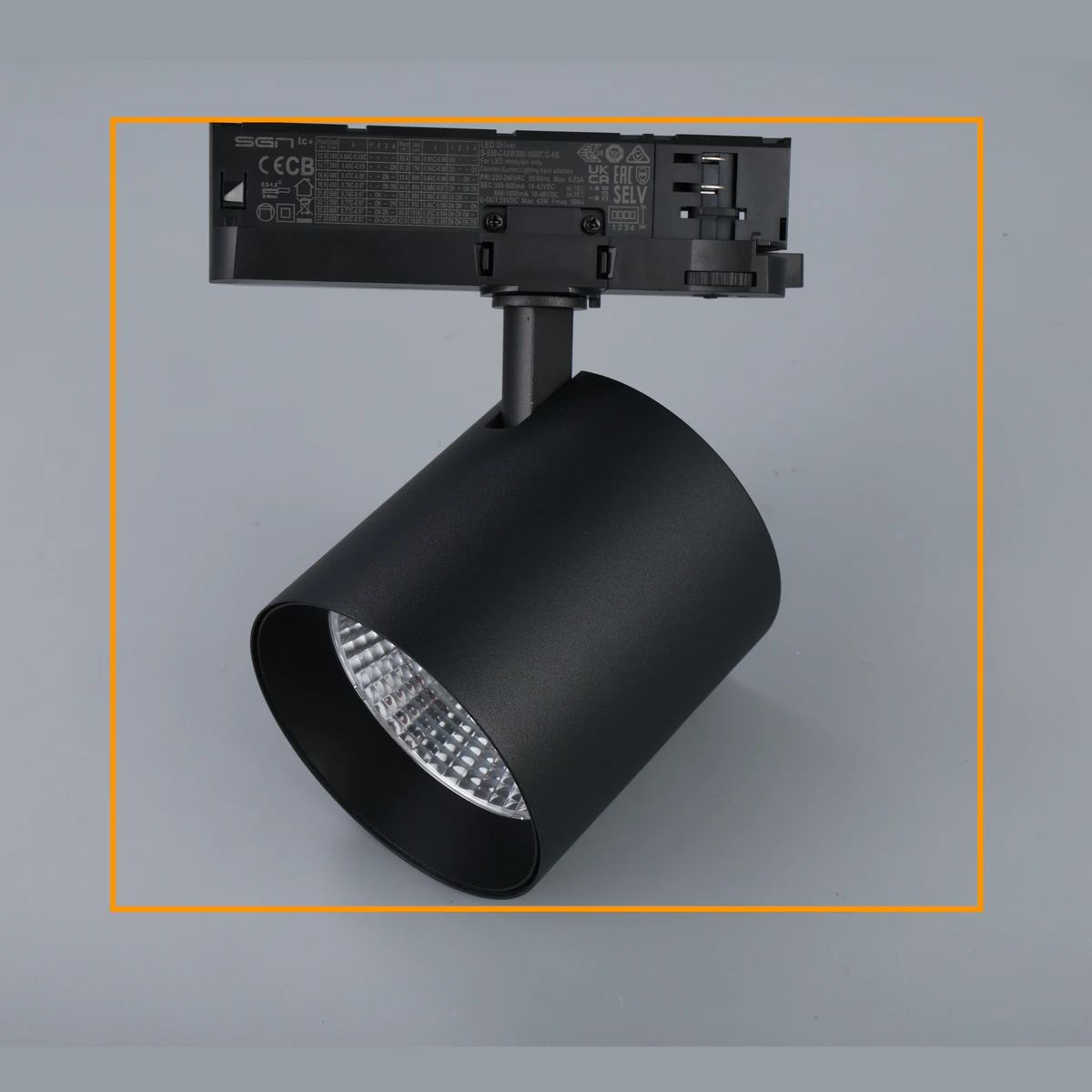

Choose by wattage and beam angle

Selecting a track spot for a commercial scheme comes down to ceiling height, throw distance and the effect you want:

• 15–25 W · 24°–36°: general shelf and rail lighting in fashion and boutique retail at 2.7–3.5 m.

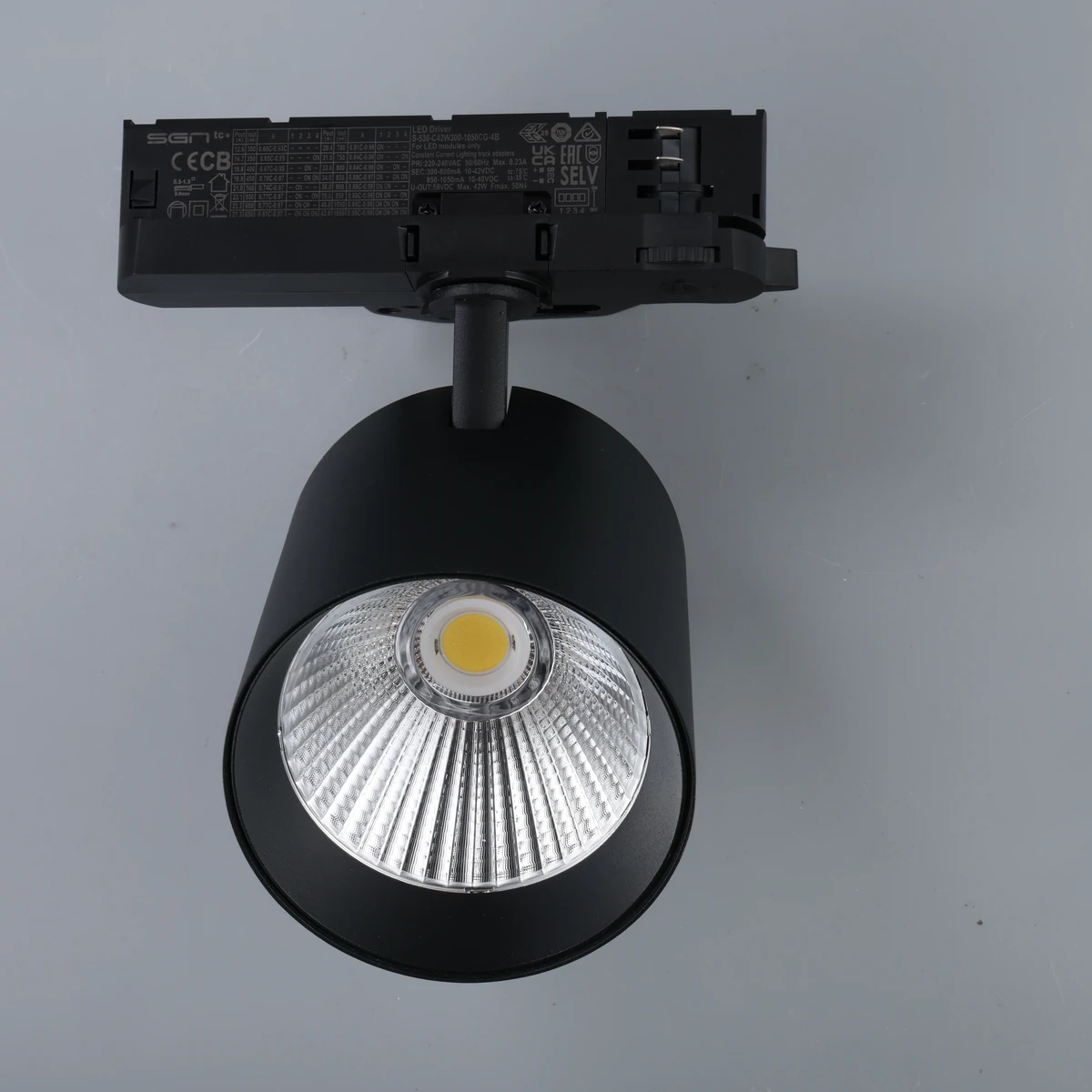

• 25 W · 24°: the workhorse display spot: strong accent on mannequins, feature walls and window zones.
• 32 W · 15°–24°: high ceilings and long throw, or where a single fixture must read as a highlight from distance.

For a fuller explanation of matching optics to ceiling height, see our beam angle guide. For wiring an existing or new rail, see 3-circuit track installation.

Applications

Track lighting is the accent layer in most of the schemes we supply:

• Retail & shop lighting: accent and wall-wash for fashion, display and feature zones, typically over a 750 lx ambient base.
• Showroom lighting: Ra90 spots and ultra-slim linear for automotive and gallery display.
• Commercial lighting: track as the flexible layer across mixed-use commercial interiors.

Two linear formats run on the same rail: the twin-row angled linear track light and the white linear track light.

Within the round-head range the spots split by optic: the zoomable track spotlight for floors that get re-merchandised, the COB track spotlight in white for bright ceilings, and the slim track spotlight where the fitting should read as small as possible.

Where the brief calls for a deep-recessed, low-glare head on the same 3-circuit rail, museum, jewellery and premium showroom work, specify from the LED grille track spotlights range instead; the adaptor and track are identical, only the optic changes.

Why buy track lighting from KELVANO

Three things separate our track system from a generic China-direct listing: tell us your existing rail profile and we confirm the matching adaptor before you order, the driver is an integrated flicker-free unit as standard, named on your proforma invoice rather than left unspecified, and a photometric file can be measured for your specification instead of a marketing datasheet. That is what lets a specifier prove the scheme and a buyer plan the maintenance. We supply this system to UK and European fit-out contractors and wholesalers under a 5-year warranty.

Request a quotation

From a single store to a multi-site rollout: send the brief and we return the layout, fixture schedule and quotation.

Send your rail type, area and target lux and we will quote fixture selection and quantities within 24 hours. We can prepare a lighting layout for qualified projects.

Request a quote → · WhatsApp +86 189 9834 8092 · [email protected] · replies within business hours (GMT+8)
